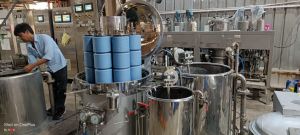

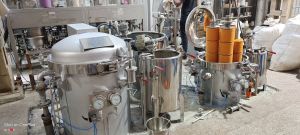

HT/HP VERTICAL YARN DYEING MACHINES.
Introducing our HT/HP Vertical Yarn Dyeing Machine, a compact yet powerful solution for precision dyeing of yarn.
Designed for efficiency and consistency, this machine features: -
Very Low Liquor Ratio From 1:4 to 1:6.
Turbo Main Pump With Multi Stage High Flow.
Loading Up to 50 % Possible.
Variable Frequency Drive ( VFD ) For Main Pump.
PLC With TOUCH Screen For Complete Automation of Operations.
Stainless Steel Electric Panel Encloser. Mechanical & Electronic Safety.
Differential Pressure Gauge.
Coil Type Heat Exchanger for Efficient and Fast Heat Transfer
CAPACITY : 15 KGS TO 2000 KGS PER BATCH.
HEATING MEDIA : STEAM / THERMAL FLUID.
LIQUOR RATIO : 1:4 TO 1: 6.
Machine is suitable for dyeing of all types of yarn like cotton, polyester, wool, acrylic & It's blends in form of cone bobbin, cheese, dye spring, hank, loose fiber, Muff & knitted. Hose capacities are from 15kgs/lot up to 2000kgs/lot. These machines are also suitable for dyeing narrow width tape, zipper tape & elastic tape.
• Installation requires 2 floors (Ground & Platform).
• Installation requires Hoist (crane) with factory shade height of minimum of 24ft to 36ft maximum depending upon machine capacity.
• Material to liquor ratio from 1:4 to 1:6(*may vary from yarn to yarn).
• Automation possible to automate all functions including interactive ones by means of PLC & TOUCH PANEL.
• Complete Automatic Running of dyeing cycle through PLC with dual directional dye liquor flow, auto filling & drain.
